作為模具配件定制生產廠家，特別是模具配件業務涉及到外貿性質的，難免對模具及模具配件行業中相關的一些專業術語的準確叫法有些生疏，因此，長沙博潤模具經過多年在模具配件行業的經驗累積，終于整理出一份模具行業常用術語中英文對照表，雖然不是很全，但已足夠讓你增加對模具及模具配件行業的了解。

一、模具專業基本用詞ProfessionalTerms

1、塑料-plastic，resin

2、樣件-sample

3、鋼料-steel

4、注塑機-injectionmachine，press

5、產品-part，product，moulding

6、模具-mold，mould，tool

a、簡易模(樣板模)—prototypemold

b、量產用模具-productionmold

7、三維造型(數模)—3Dmodel，3Ddata

8、二維產品圖-2Dpartdrawing

9、設計-design

10、制造-manufacture，buildup，construction，fabrication，make

11、檢驗-check，inspection

12、測量-measure，inspection

13、修改-change，modify，correction

14、工程更改-engineerchange

15、質量-quality

16、數量-quantity

17、基準-datum，reference

二、如何解析2D產品圖?Howtoread2Dpartdrawing?

(一)、產品幾何Geometry

1、點-point

2、線(邊)-line，edge

3、面face

a、側面-side

b、表面-surface

c、外觀面-appearancesurface

4、壁厚-wallthickness，stockthickness

5、加強筋(骨位)-rib

6、孔-hole

7、細長的槽-slot

8、柱位-boss

9、角-corner

a、圓角-fillet

b、倒角-chamfer

c、尖角-sharpcorner

10、斜度-angle，taper

11、凹槽—recess，groove

(二)、分模信息Splitting

1、分型線-partingline(P/L)，splittingline

2、主分模方向-maindirection，lineofdraw

3、澆口設定-gating

(三)、產品標識PartIdentification

1、產品名稱-partname(P/N)

2、產品編號+版本號-partnumber+revision(Rev、)

3、型腔號-cavitynumber

4、材料標記-materialsymbol

5、模具編號-moldnumber(no、)

6、日期印-datinginsert，datecode

7、循環印-cyclingcode

8、公司標志-companylogo

(四)、技術要求Specification(SpecialRequirement)

1、項目啟動表Kick-offsheet

1)項目名稱-programname，projectname

2)產品名稱-partname，productname，partdescription

3)產品編號-partnumber(P/N)

4)客戶模號-customermoldno、

5)項目啟動日期-kickoffdate，startdate

6)項目完成日期-duedate，leadtime

7)內模件用鋼-toolsteel

8)型腔數量-numberofcavities

9)數據文件編號-datafileno、

10)注塑材料-resin，plastic，rawmaterial

11)收縮率-shrink，shrinkage，shrinkfactor

12)注塑機噸位-moldingmachinesize，injectionmachinesize

13)成型周期-cycletime

14)型腔光潔度-cavitypolish

15)型芯光潔度-corepolish

16)皮紋(曬紋)—texture，grain

17)拔模斜度-draftangle，removaltaper

18)注塑件顏色及光澤-moldedcolor&gloss

19)模具加工地-manufacturingfacility

20)熱流道供應商-manifoldmanufacturer，manifoldsupplier

21)澆口位置-gatelocation/position

22)澆口類型-gatetype

產品標識-stampinformation，partidentification

特殊要求-specialinstructions

1、產品質量及外觀要求PartQuality&AppearanceRequirement

1)尺寸及公差Dimension&Tolerance

①重要尺寸-criticaldimension，importantdim、，keydim、

②理論尺寸-nominaldimension

③實際尺寸-actualdimension

④公差-tolerance

⑤公差帶-tolerancerange

⑥尺寸超差-dimensiondeviation

⑦接受(合格)-accept，OK

⑧拒絕(不合格)-reject，refuse，obsolete，NG

⑨讓步接受-concession，specialadmit

⑩返工-re-work

2)產品缺陷(常見的)Defects(normal)

①縮水-sinkmark，shrinkage

②飛邊，毛邊-flash，burr

③段差-mismatchdiscrepancy

④銀絲紋，蛇紋-snakemarks，streak

⑤彎曲，變形-warpage，distortion

⑥打不飽(缺料)-shortshot

⑦熔接線-weldline

⑧多膠—unwantedplastic

⑨拉傷—damage

2、產品外觀PartAppearance

①產品顏色-partcolor

②產品光澤-gloss

③皮紋粒度-grain

3、常用詞匯、詞組及短語NormalWord，ShortSentence

1)單邊-perside

2)雙邊-bothsides

3)加入，添加-add，incorporate

4)去除，取消-remove，cancel

5)滿足…的要求，符合，與…要求一致-accordingto，conformto，satisfy，meet

6)要求，需要-require，need，demand

7)確認-beapproved，agreedby…

8)允許-permit，allow

9)在…范圍之內-within

10)不可以，不允許，禁止-freefrom，prevent，avoid

11)…，除非有另指-…unlessotherwisespecified

12)…或少于-…orless

13)自動化運作-automaticoperation

14)未注尺寸(詳細形狀)見三維造型

Nondimensionedcontour(detailedshape)see3Dmodel、

15)分型線上的飛邊(披縫)或段差應小于…

BurrsordiscrepancyontheP/Lshallbe…orless、

標題欄TitleBlock

1、產品名稱-partname

2、圖紙編號+版本號(索引號)—drawingno、+level(index)

3、一般公差-generaltolerance

三、如何閱讀制模標準?Howtoreadtoolingstandard?

(一)、、模具結構術語MoldConstructionTerms

A、模架MoldBase

1、模架量化特征MeasurementFeature

①長X寬X高-LengthXWidthXHeight

②模具高度尺寸(模厚)-stackheightofmould

③模具重量-totalweightofmould，mouldthickness

2、定模底板-frontplate，topclampingplate，clampplate，clampingplate

3、定模板-cavityplate，fixedmouldplate，A–plate

4、動模板-coreplate，movingmouldplate，B–plate

5、支撐板-supportplate，backingplate

6、間隔板，方鐵-supportblocks，rails，risers，spacerblock

7、頂桿固定板-retainingplate，ejectorretainingplate

8、頂板-ejectorplate，bottomclampingplate

9、動模底板-backplate

10、導柱-guidepillar，leaderpin，guidepin

11、導套-guidebush，leaderpinbush

12、復位桿-returnpin，push-backpin

13、彈簧-spring

14、撐頭-supportpillar

15、頂針板導柱、導套-ejectionguidepin/bush

16、垃圾釘-stoppin，stopbutton

17、模腳-standing-offpillars

18、標牌-plaquescutcheon

B、成型零部件mouldingcomponents

1、型芯-coreinsert

2、型腔-cavityinsert

3、鑲針-corepin

4、鑲塊-sub-insert，split

5、滑塊-slide，slidingsplit

6、斜頂-lifter，angled-liftsplit，loosecore

A斜頂頭-lifterhead

B斜頂桿-lifterrod，liftershaft

7、成型頂桿-mouldingfacepin，formpin

C、澆注系統FeedSystem

1、塑料Moulding

a、主流道-sprue

b、分流道runner

①主分流道-mainrunner

②二級分流道-branchrunner

分流道斷面形狀cross-sectionalshapeofrunner

①圓形-fullround

②半圓形-semicircular

③梯形-trapezoidal

c、澆口gate

常用澆口形式normalgatetype:

①邊緣澆口(J型澆口)-edgegate，J–gate

②側澆口-sidegate

③潛伏式澆口-sub-gate，subsurfacegate，submarinegate，cashewgate

④潛伏式二次澆口(隧道式澆口)-tunnelgateontofeederpost

⑤點澆口-pingate

⑥直接澆口(主流道型澆口)-spruegate，directgate

⑦護耳式澆口-tabgate

d、模腔-impression

e、冷料井-coldslugwell

f、熱流道-hotrunner

2、模具零件moldcomponents

a、定位圈-locatingring，locationring，registerring

b、澆口套-spruebush

c、擋圈-stopring

d、澆口鑲塊-gateinsert

e、熱流道板-manifold

f、熱嘴-hotdrop\hotsprue

分型面及其鎖緊、排氣PartingSurface，inter-locking&venting

1、分型線-partingline(P/L)

2、鑲拼線-bodyline，jointline

3、平/不平的分型面-flat/non–flatpartingsurface

4、封膠面-shutoffsurfaces，seal-offsurfaces

5、擦穿位-shutoff

6、碰穿位-kiss-off

7、管位-partinglinelock

8、分型面的釋放(避空)-reliefofpartingsurface

9、分型面的平衡-balancingofpartingsurface

10、鎖緊角度-lockingangle

11、鎖緊力-clampingforce

12、鎖模塊-safetystrap

13、精定位-Interlock，dielock

14、困氣-airtrap

15、排氣槽-vent，ventslot

E、滑塊機構Slide

1、驅動Actuation

①斜導柱-anglepin，hornpin，campin

②彈簧-spring

③油缸-hydrauliccylinder

2、制動Detention

①滑塊固定器-slideretainer

②彈簧制動器-spring-loadeddetention(plunger)

③擋釘、擋板-stoppin，stopplate，slidestop

3、導軌-gib，guidestrip

4、鎖緊塊(楔緊塊)—heelblock，lockingheel，wedgeblock，chaseblock

5、耐磨片-wearplate，wearstrip

6、壓板-retainer，gib

7、螺釘-screw

8、定位銷-dowelpin

F、斜頂機構Lifter

1、斜頂頭-lifterhead

2、斜頂桿-lifterrod，liftershaft

3、開口銷-splitpin

4、固定板(壓板)-retainerplate

5、耐磨片-wearplate

6、銅導套-bronzebushing

7、襯套-spacer

8、導軌-L–gib

9、滑動塊-slide

G、頂出系統EjectionSystem

1、基本詞匯BasicWord

①頂出行程-ejectionstroke

②模具開檔-daylight

③粘模-stick

④產品脫模-partispushofffrom，clearpartofmould，separationofpart

2、頂板機構Ejectorplateassembly

①頂板-ejectorplate

②頂板固定板-retainingplate

③推板—stripperplate

④推板導柱-ejectorguidepin

⑤推板導套-ejectorguidebush

⑥撐頭-supportpillar

3、復位機構ReturnSystem

①復位桿(回程桿)—returnpin，push–backpin

②垃圾釘-stoppin，stopbutton

③壓簧-compressedspring

④碟簧-astackof―Belleville‖washers

⑤早復位機構-earlyreturnsystem

⑥強制復位機構-positivereturnsystem

4、頂出方法EjectionTechniques

1)頂桿頂出-pinejection

2)頂管頂出-sleeveejection

3)頂塊頂出-barejection

4)扁頂頂出-bladeejection

5)頂板頂出-stripperejection

6)油缸頂出-hydraulicejection

7)氣頂-airejection

8)閥門頂出-valveejection

5、頂出元件EjectionElements

1)拉料桿-spruepuller，suckerpin

2)頂桿-ejectorpin

3)階梯式頂桿-steppedejectorpin

1)頂管-ejectionsleeve，sleeve

2)扁頂-ejectorblade，slabbedoffejectorpin

3)頂塊-stripperbar

4)頂環-stripperring

5)推板-stripperplate

6)加速頂-acceleratedejection

1、頂出輔助機構Supplementaryoperatingsystem

1)彈簧柱塞器-spring–loadedplunger

2)彈珠定位器-ballcatchsystem

3)插銷式鎖扣-Latch–lock

4)尼龍拉桿裝置-frictionpullerdevice

2、電器元件ElectricComponents

1)壓力傳感器-pressuretransducer

2)限位開關-limitswitch

F、冷卻系統CoolingSystem

1、基本詞匯BasicWord

1)溫差-temperaturevariation

2)水孔(水道)-waterlines，water-ways，flow-way，channel

3)水路-coolingcircuit

4)水路示意圖-waterschematic，schematiccircuit

5)冷卻液-coolant，coolantfluid

6)內連接-interconnect

7)外連接-externalconnection

8)出口、入口-outlet、inlet

9)漏水-waterleakage

2、水路分布Circuits

1)階梯式水路-steppedsystem

2)分隔板水路-baffledholesystem

3)斜孔式水路-angledholesystem

3、水路元件Components

1)悶頭(螺塞、止水栓)-(threadless)brasspressureplug:femaleplug&male

2)隔水片-baffle

3)密封圈-O–ring

4)快插水路接頭-quickdisconnectfitting，quickconnectionadaptor

5)彎頭-elbow

6)偶合器(連接器、接頭)-adaptor(includingaplug&asocket)

7)橡皮管-rubberhose

1)分水板，集水塊-watermanifold

G、螺紋、螺紋孔&螺釘Thread，threadhole&screw

1、螺紋-thread

2、管螺紋-pipethread

3、螺紋孔-screwhole，tappedhole

4、起吊孔-handlinghole，jackscrewhole，eyebolthole

5、螺釘-screw

6、內六角螺釘-socketheadedcapscrew(s、h、c、s、)

7、沉頭螺釘-flatheadedcapscrew(f、h、c、s)

8、螺栓-bolt

9、螺母-nut

10、鎖緊螺母-locknut

11、螺紋標準ThreadStandard

①公制標準-Metric

②英制標準-Imperial

③英制管螺紋標準-BritishStandardPipethread(BSP)

④美制管螺紋標準-NPT

⑤美制粗螺紋標準-UnitedCoarsethread(UNC)

⑥美制細螺紋標準-UnitedFinethread(UNF)

H、潤滑Lubrication

1、潤滑槽-greasegroove

2、加油管-greaseline

3、油杯-lubricationfitting

I、測量儀器MeasuringInstruments

1、游標卡尺-verniercaliper

2、千分尺-micrometer

3、高度規-heightgauge

4、刻度規-dialgauge

5、三坐標測量儀(三次元)-CoordinateMeasureMachine(CMM)

6、塞規-pingauge

7、圓角量規-radiigauge

8、輪廓投影機—profileprojector

J、注塑機參數InjectionMachineParameter

1、注塑機規格參數InjectionMachineSpecification

①鎖緊類型clamptype

a、油缸-hydraulic

b、肘桿式-toggle

②垂直注塑機導柱間距-tiebarverticalclearance

③水平注塑機導柱間距-tiebarhorizontalclearance

④臺板尺寸-platendim、

⑤最小/最大模厚-moldheightMin/Max、Min/Max、moldthickness

⑥最小/最大注塑機開檔-opendaylightMin/Max

⑦鎖緊行程-clampstroke

⑧鎖緊力-clampingforce

⑨頂出行程-ejectorstroke

⑩頂出力-ejectorforce

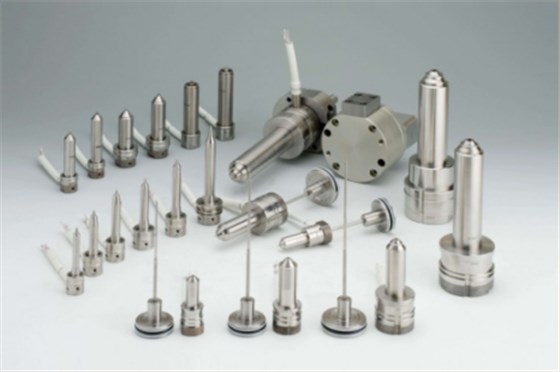

博潤模具以“NITONI“牌高精密鑲針、沖針、扁針、司筒及各類非標異形件為依托，以一流的模具配件專業銷售、技術和服務的團隊為后盾，已發展成一家集塑膠模具零配件、沖壓模具零配件及機械零配件等產品為一體的生產商和出口商。咨詢熱線：0731-88908466
